Overview

During my internship at Tictag, I worked on an advanced product interaction detection system designed for retail environments. The goal was to analyze monocular CCTV footage and automatically identify when a shopper interacts with a product in a specific Region of Interest (ROI) — including whether an item was picked up, put back, or left untouched.

Instead of relying on basic motion detection, this project leverages deep learning models, pose estimation, segmentation, and depth perception to infer intent and behavior, unlocking new potential for in-store analytics, shelf optimization, and product placement evaluation.

Key Objectives

• Detect human interaction with products using overhead or angled CCTV cameras.
• Determine which ROI (e.g., product shelf) was interacted with.
• Classify interactions as either addition or removal of products.
• Enable retail analytics for customer behavior without requiring additional sensors.

How It Works

To accurately detect product interaction events in retail CCTV footage, we developed a multi-stage vision pipeline that combines object detection, pose estimation, spatial classification, segmentation, frame differencing, and depth analysis.

1. Person Detection

• Model: PekingU/rtdetr_r50vd_coco_o365
• We use RF-DETR, a transformer-based object detector, to detect all human figures in the frame.
• This lightweight and efficient detector offers reliable bounding boxes for tracking individuals in crowded environments.

2. Pose Estimation

• Model: usyd-community/vitpose-plus-huge
• For each detected person, we run ViTPose to extract 17 body keypoints, including wrists, elbows, shoulders, and more.
• Each keypoint includes a (x, y) coordinate and a confidence score.
• These keypoints are used to infer body pose and the directionality of arm movement, crucial for detecting interactions.

3. Interaction Classification

• Model: Custom XGBoost classifier
• We calculate the normalized relative distance between each keypoint and the center of each predefined ROI.
• These relative features help the model learn spatial interaction patterns, independent of camera position and frame resolution.
• The XGBoost model then predicts which (if any) ROI the person is likely interacting with in a given frame.
• This approach is distance-aware and allows classification of interaction even in cases where arm contact is ambiguous.

4. Body Segmentation

• Model: yolov11m-seg
• To avoid false positives from moving limbs, we segment out the person’s body inside each ROI.
• This ensures that subsequent change detection steps are only sensitive to object-level changes, not body motion.

5. Frame Differencing

• Technique: OpenCV’s BackgroundSubtractorMOG
• We use background subtraction on cropped ROI patches before and after the predicted interaction to detect pixel-level changes.
• If significant visual change is detected, we confirm that an interaction indeed altered the scene.

6. Depth Estimation

• Model: Intel/dpt-large
• To distinguish between adding vs removing a product, we estimate monocular depth using a DPT model.
• For example:
  • If the average depth in the ROI increases, it suggests a product was removed (background revealed).
  • If the average depth decreases, it suggests a product was added (foreground occlusion).
• This adds a 3D-awareness component to an otherwise 2D pipeline.

This hybrid rule-based and learning-based system enables fine-grained analysis of retail interactions—even under challenging conditions like crowding, occlusion, or suboptimal camera angles.

Challenges Faced

Building a reliable interaction detection system for retail CCTV analytics was far from straightforward. Some of the key challenges we faced include:

• Occlusion:
  Customers often block each other or key body parts, especially in crowded retail spaces, making person detection and pose estimation highly unreliable.

• Crowding and Overlap:
  In dense environments, pose keypoints frequently overlapped or were misattributed, leading to confusion in tracking and interaction mapping.

• Non-Ideal CCTV Angles:
  Most models (like ViTPose or YOLO) are trained on datasets with front-facing or side-view images. Retail CCTV footage typically comes from elevated, angled monocular cameras, resulting in reduced accuracy and distorted detections.

• Misclassification of Actions:
  Standing near an ROI or casually moving an arm could be misclassified as an interaction, while real interactions were sometimes missed due to pose ambiguity.

• Inaccurate Depth from 2D:
  With only monocular input, depth estimation was noisy. It was difficult to accurately determine if a hand was entering, hovering over, or leaving an ROI, leading to false positives or negatives.

• Pose Estimation Jitter:
  Wrist and elbow points were especially noisy, fluctuating across frames and making interaction direction estimation unstable.

• Performance Bottlenecks:
  Processing just 1 minute of video could take over 6 minutes on an NVIDIA A100 GPU, due to the heavy stack of models—person detection, pose estimation, segmentation, and depth inference all run frame-by-frame. This made real-time or near-real-time deployment infeasible without major optimization.

Despite these obstacles, we developed a reasonably robust pipeline by combining multiple vision models and rule-based logic, offering actionable insights for retail clients.

Demo

🚫 Not Publicly Available
The system is currently used internally at Tictag and cannot be shared due to company policy. Please reach out for a private demonstration.

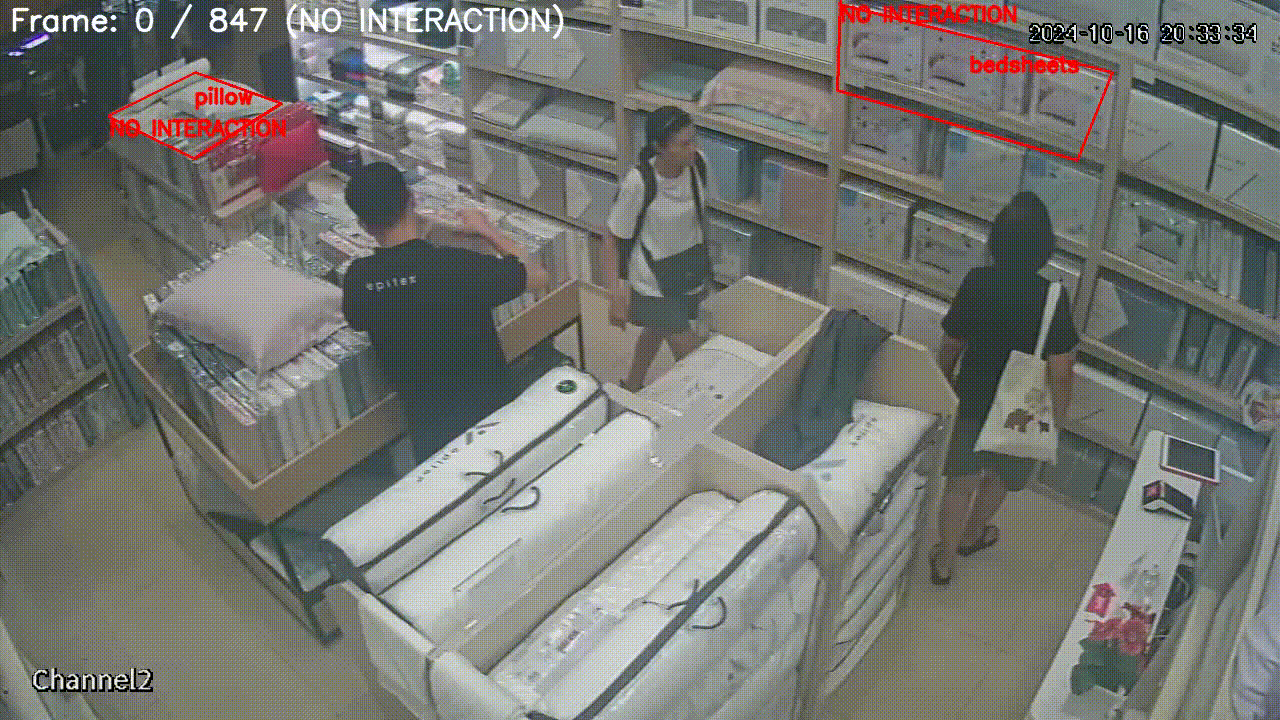

However, here’s a representative demo GIF showcasing the interaction detection in action:

Reflections

This was my first time integrating multiple AI models into a real-world deployment pipeline. I learned how to stitch together multiple stages of perception, work with noisy outputs, and build a practical, scalable solution. It also gave me a deeper appreciation for human-in-the-loop annotation, something Tictag specializes in.

Models Used

• Person Detection: PekingU/rtdetr_r50vd_coco_o365
• Pose Estimation: usyd-community/vitpose-plus-huge
• Segmentation: yolov11m-seg
• Depth Estimation: Intel/dpt-large

Built With

• Python, OpenCV
• ONNX Runtime
• XGBoost
• Hugging Face Transformers
• Tictag’s custom annotation and video processing platform

Internship @ Tictag

This project was part of my internship at Tictag, a startup that builds hybrid AI-human data labeling tools. I worked closely with their engineering and product teams to design, build, and iterate on this interaction detection module. It was an eye-opening experience into the messy but rewarding world of applied computer vision.
